Wedge Wire Cartridge Filters

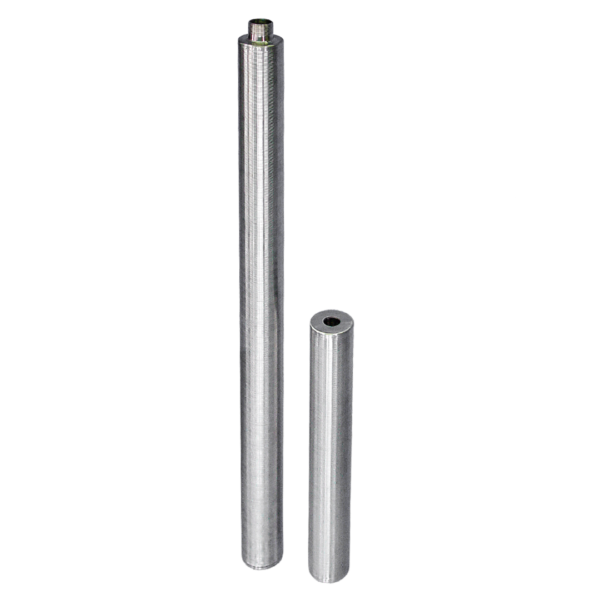

Wedge Wire Steel Cartridge Filter

Wedge Wire Filters deliver durable, reusable filtration for high-temperature and high-pressure applications across a wide range of industries. Engineered from robust stainless alloys, they provide excellent corrosion resistance and long service life.

  • Available in SS304, SS316, Super Duplex 2507, and C-276
  • Nominal micron ratings from 50 to 900 microns
  • High temperature capability up to 1500°F (815°C) with NPT
  • Excellent corrosion resistance for harsh environments
  • Reusable and easy to clean for extended service life

Product Type: Element

Suitable Applications

Product Downloads

Product Options

Materials of Construction

Media: SS304, SS316, Super Duplex 2507, C-276

Available Sizes

Outside Diameter: 2.5 in (6.35 cm)

Inside Diameter: 1 in (2.54 cm)

Lengths: 10 in, 20 in, 30 in, 40 in (25.4 cm, 50.8 cm, 76.2 cm, 101.6 cm)

Design Pressure/Temperature

300 PSID @ 500°F (260°C) with synthetic seals

1500°F (815°C) for NPT connections

Configuration

E2: Double Open End with Gaskets

E4: Single Open End with 222

E6: Single Open End with 226 & Fin

E12: Single Open End with 1″ MNPT

E13: Single Open End with 1″ FNPT

Micron Ratings

50, 75, 80, 100, 125, 150, 200, 225, 300, 375, 550, 900

Filter Efficiency

Nominally rated

Additional Details

Fil-Trek Wedge Wire Filters are designed for industrial processes where strength, heat tolerance, and chemical resistance are essential. Their open, non-clogging design makes them ideal for use in challenging conditions, from cryogenics to high-temperature catalyst recovery. Reusable construction helps reduce operating costs and downtime.

Typical Applications:

High Temperature
Backwash Systems
Steam
Viscous Fluids
Corrosive Applications
Corrosive Gasses
Caustic Cleaning
Hydraulic Oil
Cryogenics
Polymer Filtration
Hot Wax
Catalyst Recovery
Hot Melt
