TLDV Series

Duplex Top Entry Single Bag Filter Housings

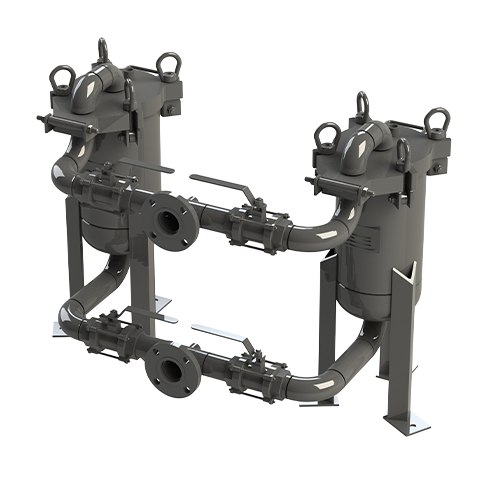

The Fil-Trek TLDV Series is a duplex configuration of two TL top-entry single bag housings designed for continuous operation and minimal downtime. Built for industrial and commercial liquid filtration, it allows one vessel to remain in operation while the other is serviced or reloaded, ensuring uninterrupted process flow.

  • Duplex top-entry configuration for continuous filtration
  • ASME or industrial non-code design
  • Swing-bolt closure for quick bag access
  • Available in carbon steel or stainless steel (304, 316)
  • Compact and durable design for critical process applications

Suitable Applications

Product Downloads

Product Options

Materials of Construction

Carbon Steel, 304 Stainless Steel, 316 Stainless Steel

Available Sizes

Accepts single (P1) or double-length (P2) filter bags

Design Pressure/Temperature

150 psig (10.3 bar) @ 300 °F (150 °C)

Additional Details

The TLDV Series combines two TL housings in a duplex configuration, allowing one unit to filter while the other undergoes maintenance. Designed for critical liquid filtration, it features top-entry flow, swing-bolt closure, and a compact dual-vessel frame for easy serviceability. Perfect for applications requiring constant operation and minimal downtime.
