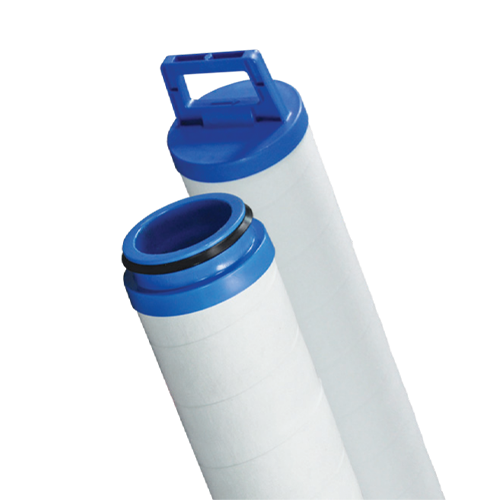

FX-HDG Series HelixDepth Gas Particulate Filter

Gas Particulate Filter

The Fil-Trek FX-HDG Series HelixDepth Gas Particulate Filter is a high-efficiency depth-style cartridge engineered for the removal of solid contaminants from gas streams. Designed for tool-free quick change-outs, it provides extended service life and the lowest cost of ownership in the industry.

  • Gradient-density depth media captures both coarse and fine particulates
  • High dirt-holding capacity for longer run times and lower pressure drop
  • Tool-free change-out design for faster maintenance and reduced downtime
  • Compatible with Parker Peco Series 70 Titan PuraSep housings and Fil-Trek FX70V / FX70H

Product Type: Element

Suitable Applications

Product Downloads

Product Options

Materials of Construction

Media: Polyester or Polypropylene
Core/Support: Stainless steel inner core
End Caps: FX top and bottom caps, keyed interface
Gaskets/O-Rings: Buna-N, EPDM, or Viton

Available Sizes

Outside Diameter: 4.5″ (114 mm)
Lengths: 28″, 43″, 79″

Design Pressure/Temperature

Polypropylene Media: 180°F (82°C)
Polyester Media: 240°F (116°C)

Pressure Ratings

Maximum Differential Pressure: 50 psid (3.45 bar)
Recommended Change-Out Pressure: 15 psid (1.0 bar)

Micron Ratings

0.1, 0.3, 0.5, 1, 5, 10 µm

Filter Efficiency

Nominal depth filtration with gradient-density construction for high solids loading and consistent differential pressure control.

Additional Details

Fil-Trek’s FX-HDG Series filters are form, fit, and function compatible with leading quick-change gas filtration systems including Parker Peco EZ-PCHG DYNASEP and Jonell Depth-LOK Quick-Change (JQC). Ideal for use in natural gas transmission, processing, and compressor applications, these filters provide exceptional solids retention while maintaining low differential pressure.

Typical Applications:
Gas transmission
Processing & storage
Compressor suction/discharge
Gas gathering
Custody transfer
Glycol & amine contactors
Fuel gas
Utility air
Instrument air
