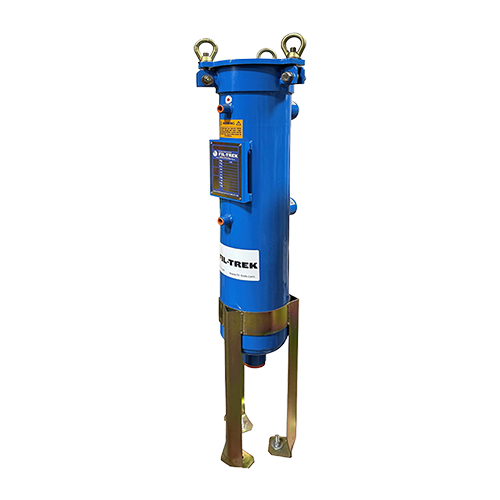

ESL Series

SL series bag filter housings are available in ASME code or a non-code industrial design. Available to accommodate one (1) single or double length bag filter in carbon steel, 304L or 316L. Flow rates up to 240 GPM are ideal for this model of housing.

Download Data Sheet

Description

Housing Materials

  • Carbon Steel
  • SS304
  • SS316

Non Wetted Parts

  • Carbon steel or carbon steel with yellow zinc plating (standard)
  • Stainless steel also available

Exterior Finish

  • Carbon steel – Paint (National Blue)
  • SS304 or SS316 – Bead blast

Gasket Materials

  • Buna-n (Standard)
  • EPDM
  • Viton
  • Silicone
  • TEV
  • Teflon

Connections

  • 2″ NPT
  • 2″ Flange
  • 3″ NPT
  • 3″ Flange
  • 4″ Flange

Closure

Swing bolt closure with hex nuts

Size of Bags

  • P1 / Size 1
  • P2 / Size 2

Number of Bags

1

ASME Code

Yes, UM Stamp available

Maximum Operating Temperature

150 PSIG (10.3 bar) @ 400°F

Design Options

  • 300 PSI available
  • Other materials available
  • Mesh lined baskets
  • Duplexing / skid assembly

All of our housings can be built to your specific requirements. Contact us for more information.
