Alaris Series

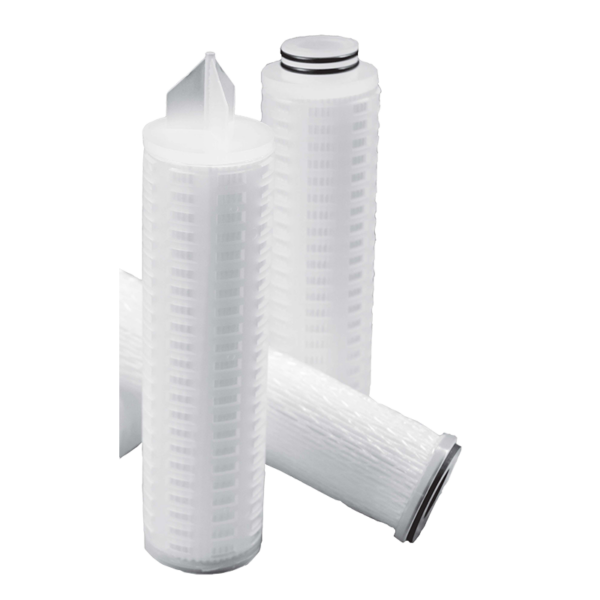

Pleated Cartridge Filter

High efficiency pleated filters with exceptional dirt holding capabilities. Polypropylene elements are FDA Title 21 compliant.

100% polypropylene
90% and 99.98% efficiency grades
FDA Title 21 compliant

Product Type: Element

Suitable Applications

Product Downloads

Alaris Series Datasheet

Product Options

Materials of Construction

Media:

Polypropylene

Core:

Polypropylene

End Caps:

Polypropylene

Available Sizes

Outside Diameter:

Netted = 2.6″ (6.60 cm)
Hard Cage = 2.65″ (6.73 cm)

Inside Diameter:

1″ (2.54 cm)

Lengths:

9.75″ (24.38 cm)
10″ (25.4 cm)
19.5″ (49.53 cm)
20″ (50.8cm)
29.25″ (74.26 cm)
30″ (76.2 cm)
39″ (99.06 cm)
40″ (101.6 cm)

Temperature Limit

Polypropylene @ 180°F (82°C)

Maximum Differential Pressure

35 PSID (2.4 bar) @ 180°F (49°C)

Recommended Change Out Pressure

15 PSID

Micron Ratings

0.02, 0.45, 1, 3, 5, 10, 25 and 50 micron

Filter Efficiency

Nominal 90%
Absolute 99.98%

Additional Details

Cartridges available in both 90% and 99.98% efficiencies
